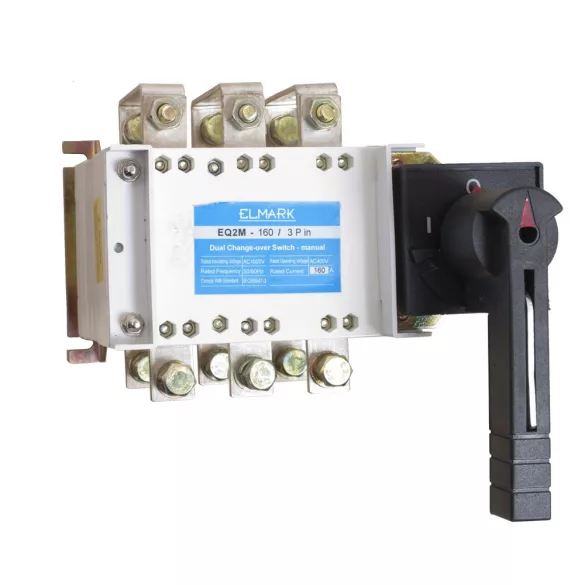

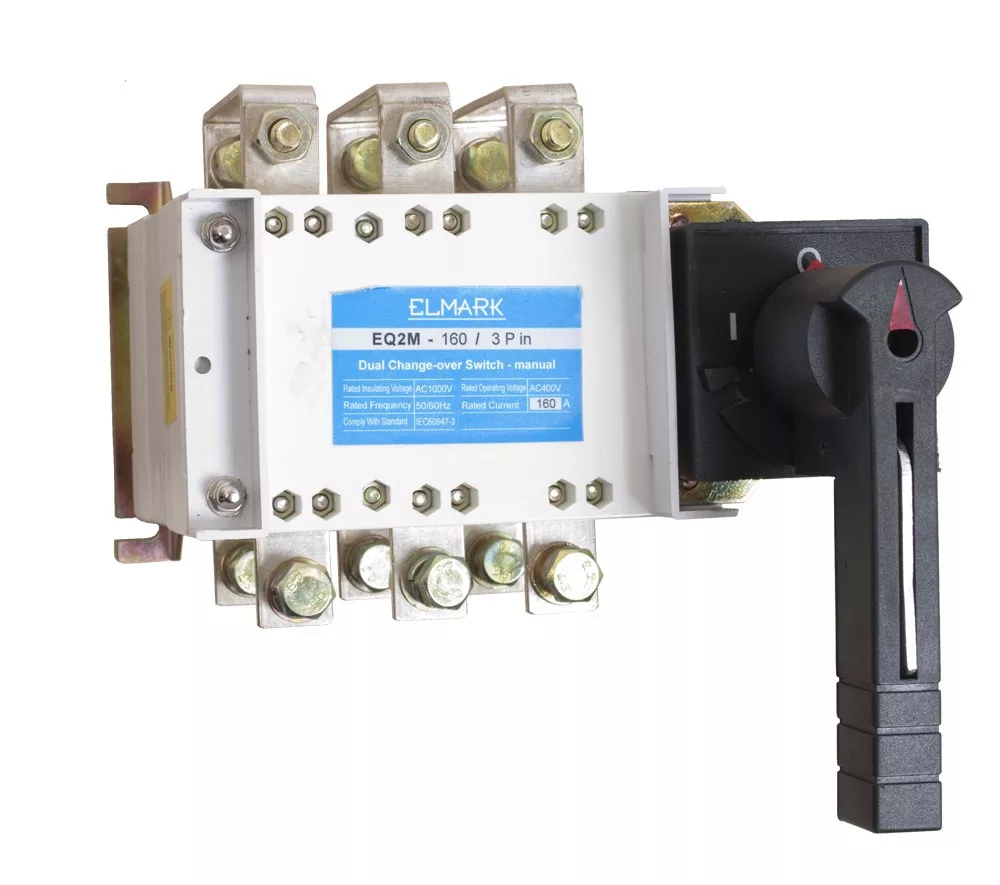

ÁTKAPCSOLÓ KÉSZÜLÉK EQ2M-250 250A 3P

Technical characteristics:
- Rated operating voltage: not higher than 690V;50/60Hz
- Rated current: 160-800A
- Insulation voltage: ≥1000V
- Number of poles: 3,4
- IP code: IP>20

Advantages:
- Resistant to high voltages
- Option for moving the handle on the front panel of the board
- High mechanical endurance and wear resistance
- Not affected by the frequency variations
- Reliable and secure control
- Long life

Functions:
- For mounting in main electrical boards for breaking of the circuits
- Manual switching between two power supplies
- Switching ON and OF generators
- Used as main switch

Applications:
- Industry
- Administrative and public buildings
- Building construction

Mounting: To a flat surface using bolts

Standards: ?N60947- 1; EN60947-3
