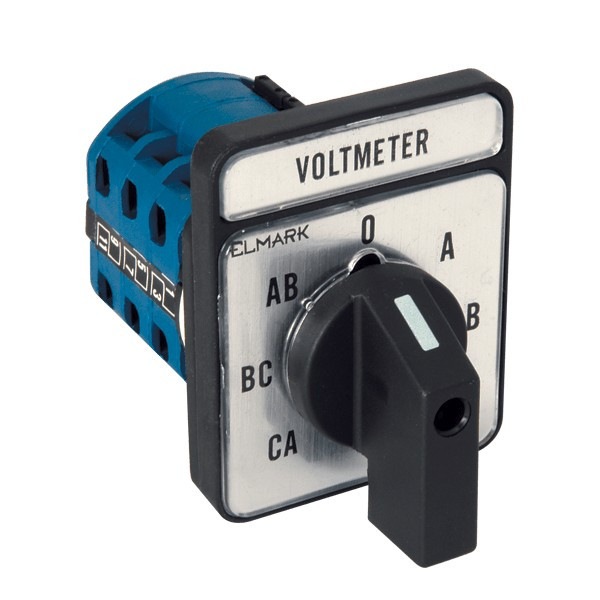

FORGÓ KAPCSOLÓ LW26-20 YH5/3 20A 3 SZINT , 7 POZÍCIÓS

Technical characteristics:
- Power supply voltage: 230/400V, 50Hz
- Number of levels: 3
- Number of positions: 7
- Insulation voltage: 690V
- Impulse voltage withstand: 6000V
- Mechanical wear resistance: 3?105 commutation cycles
- Operating temperature: -10°? - +50°?
- Humidity: 35-85%RH
- Commutation capacity: 20A
- Resistant to UV rays plastic
- Cable connection: screw joining
- Tightening torque of the bolt: 1.33Nm
- Maximum section of the power supply conductors: 2.5mm2

Mounting:
- Directly to the control panel
- Thickness of the surface: max 5mm

Standards: EN 60947-1; EN 60947-3-1
