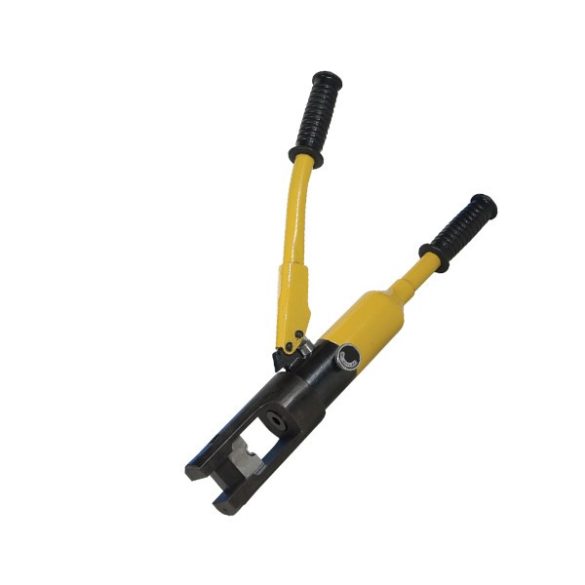

KRIMPELŐ FOGÓ KYQ-300B

Technical characteristics:
- Widht of the element: 22mm
- Device for automatic following of the effort at crimping completion
- Shape of the crimping element: hexahedral
- Size of the crimping element: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
- Section of the crimped conductors:
  = Al conductors: from 16 to 300mm2
  = Cu conductors: from 16 to 240mm2
- Pressing strength: 100kN
- Lenght: 500mm

Functions:
- Crimping of aluminum or copper conductors with cable terminals or bush in the corresponding size

Advantages:
- Metal box for the instrument
- A set of congestion hoops for the hydraulic cylinder
