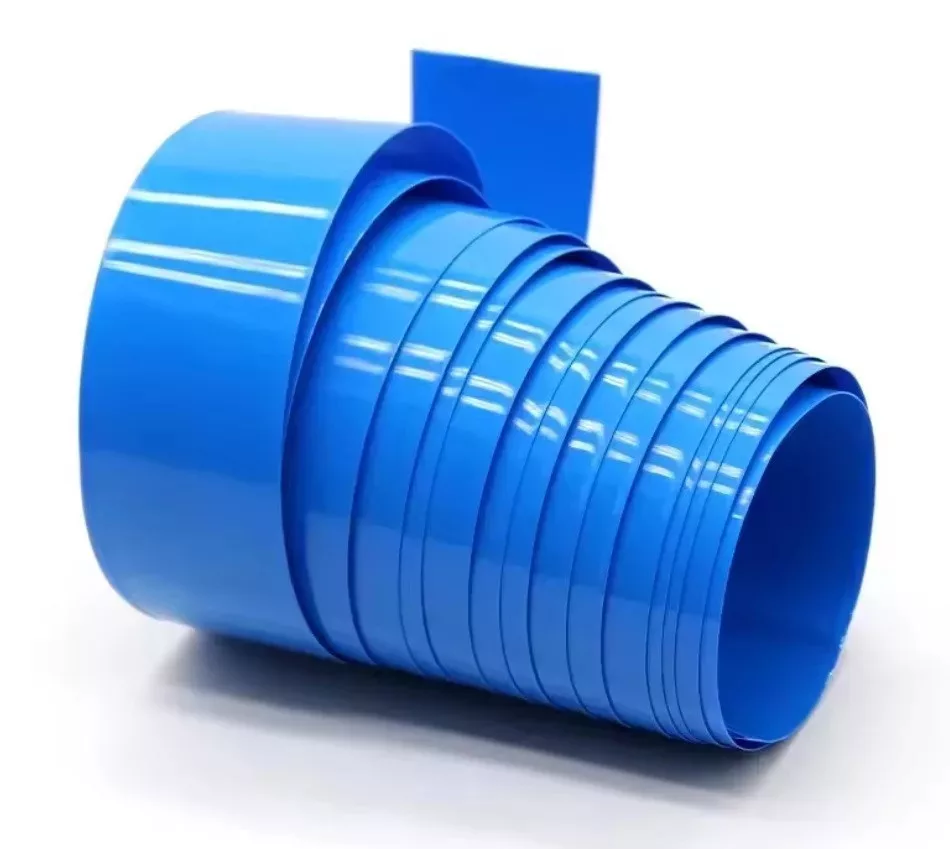

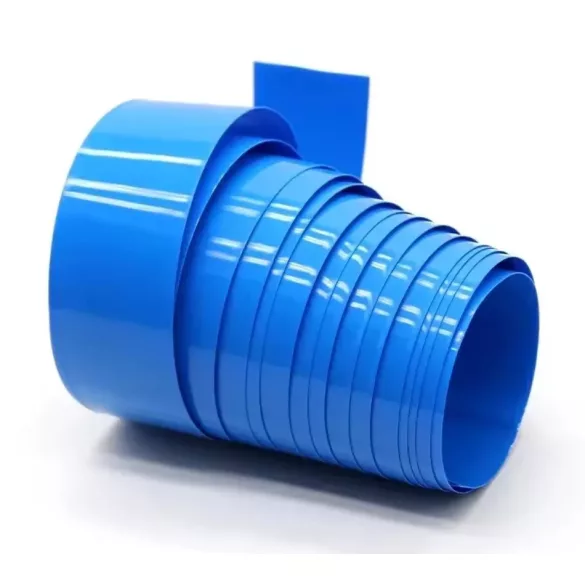

ZSUGORFÓLIA (zsugorcső) 36mm D=20mm KÉK 1 méter

Thin-wall heat shrinkage tubes are used for insulation of cable connection, at conductors repair
to protect the cable head from corrosion, for protection of the cable insulation from water and
moisture, for restoring the cable insulation integrity. It is a plastic thin wall pipe which at
temperature higher than 120°? shrinks its initial diameter to a certain degree. The material has
high temperature an UV rays resistance.

Technical characteristics:
- Material: triple cross-linked polyolefin
- Colours: blue, black, red, yellow, yellow-green, green, white
- Shrinkage ratio: min 2:1
- Shrinkage temperature: min 120°?
- Insulation resistance: 1?10¹²Ω/cm
- Insulation voltage: 1000V
- Ambient temperature: -40° to +100°?
- Condition of the material during fire exposure: slight burning
- The material does not emit hazardous substances

Standard: EN60684
