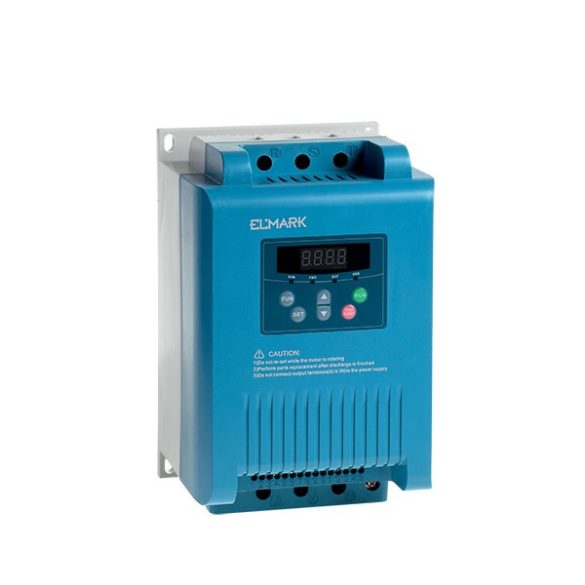

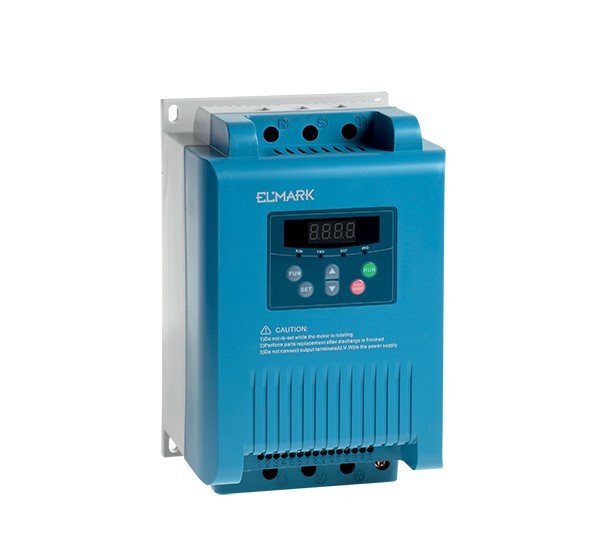

LÁGYINDÍTÓ ELM-2500 55KW 110A

LÁGYINDÍTÓ ELM-2500 55KW 110A

Technical characteristics:
- Rated operating voltage: 230/400V A?;50Hz
- Rated current: 30-150A
- Acceptable operating voltage deviation: ±10%
- Unbalance of phases: <3%
- Frequency fluctuation: <5%
- Obligatory bypass contactor installation
- Plastic: UV-rays resistant and fire resistant (self-extinguishing material)
- Maximum altitude: 2000m


Functions:
- System functions:
  = Over-voltage protection - motor will switch off when power supply
     exceeds the preset limits
  = Overload protection - protects the motor from overloading
  = Phase loss protection
  = Temperature overload protection
- Control functions:
  = Output falts
  = Motor faults diagnostics
  = Keyboard or outward control
  = Delayed start option
  = Faults memory


Mounting:
- To a flat surface using bolts
- Mounting position – vertical with maximum gradient up to ± 5º
  When more than one inverter is mounted in a board, it is recommendable to mount them next
  to each other, and when this is not possible, proper cooling of devices should be provided

Standards: EN60947-4-2; EN60947-1; LVD; EMC





ELEMNAGYKER  DURACELL  VARTA  ENERGIZER TESLA  PANASONIC  MAXELL  GP  CAMELION  SAFT  TADIRAN  SONY KODAK ELEMEK  FENIX XTAR EMOS  MACTRONIC MAGLITE  LEDLENSER  BCLUX  STREAMLIGHT  ELEMLÁMPÁK LITHIUM 18650 LITIUM LI-ION

LED FÉNYFORRÁSOK ELMARK LED,TRIXLINE LED,QTEC LED

423 507 Ft+Áfa=537 854 Ft/db
